Manual Presses with Pneumatic Assistance
The pneumatically assisted manual press offers all the guidance precision of a manual press combined with the power of a pneumatic press:
- it combines the best of both technologies, ensuring ergonomics, precision and high power output without unnecessary effort.
- Its main advantage is that it allows the workpiece to be held by hand to ensure perfect centring.
These presses are used for cutting, pressing, fitting, riveting and assembly work where a working stroke of less than 6 mm is sufficient.
The rated force specified at a pressure of 6 bar is proportionally adjustable as standard from 3 to 6 bar (and optionally from 0.5 to 6 bar).
| Power250 kg |
| Clear height45 >> 185 mm |
| Swan-neck depth80 mm |
| Power stroke*5.9 mm |
| Weight38 kg |
| Table dimensioning170 x 150 mm |

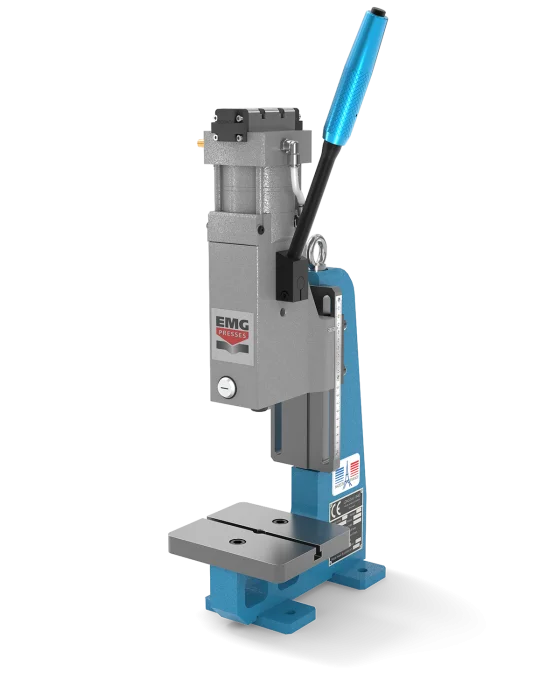

| Power500 kg |
| Clear height45 >> 185 mm |
| Swan-neck depth80 mm |
| Power stroke*5.9 mm |
| Weight38 kg |
| Table dimensioning170 x 150 mm |
| Power750 kg |
| Clear height80 >> 240 mm |
| Swan-neck depth100 mm |
| Power stroke*5.9 mm |
| Weight95 kg |
| Table dimensioning250 x 190 mm |

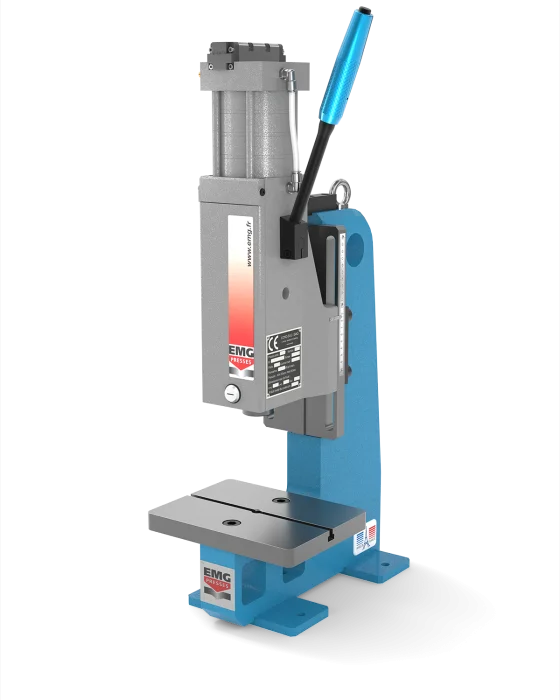

| Power1500 kg |
| Clear height80 >> 240 mm |
| Swan-neck depth100 mm |
| Power stroke*5.9 mm |
| Weight95 kg |
| Table dimensioning250 x 190 mm |
| Power2 000 kg |
| Clear height120 >> 280 mm |
| Swan-neck depth130 mm |
| Power stroke*5.9 mm |
| Weight174 kg |
| Table dimensioning300 x 220 mm |

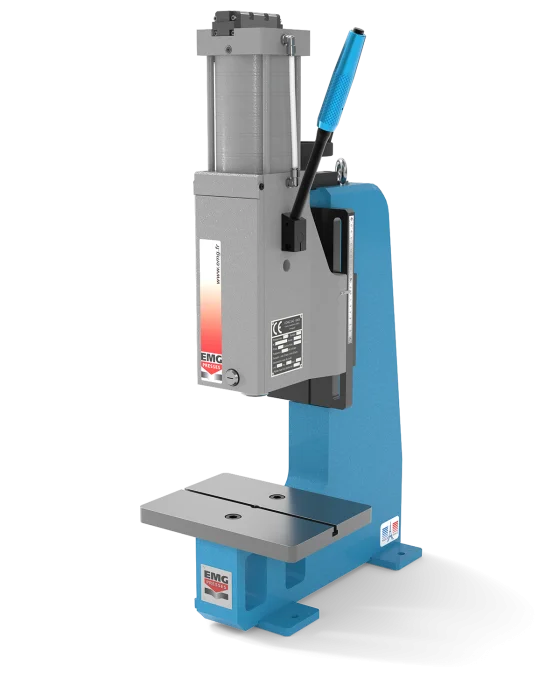

| Power3 000 kg |
| Clear height120 >> 280 mm |
| Swan-neck depth130 mm |
| Power stroke*5.9 mm |
| Weight175 kg |
| Table dimensioning300 x 220 mm |
| Power4 000 kg |
| Clear height120 >> 375 mm |
| Swan-neck depth170 mm |
| Power stroke*5.9 mm |
| Weight290 kg |
| Table dimensioning340 x 270 mm |

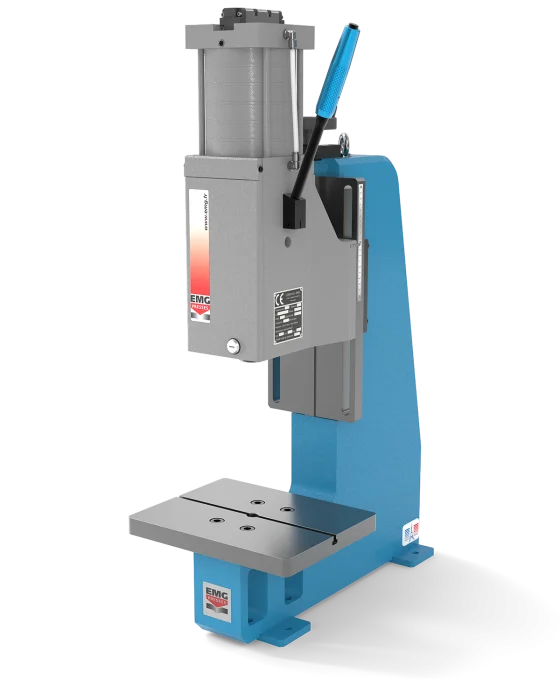

| Power5 000 kg |
| Clear height120 >> 375 mm |
| Swan-neck depth170 mm |
| Power stroke*5.9 mm |
| Weight290 kg |
| Table dimensioning340 x 270 mm |
Applications
The total stroke is thus carried out in two stages:
- Manual approach stroke:
Operating the lever allows the approach stroke to be carried out up to the point of contact between the parts to be assembled, whilst ensuring their correct positioning.
- Pneumatic working stroke:
Pressing the pneumatic control then triggers the working stroke using pneumatic power, requiring no effort from the operator even with a delivered force of 5 tonnes.
The rated force specified at a pressure of 6 bar is proportionally adjustable as standard from 3 to 6 bar (and optionally from 0.5 to 6 bar).
