Stainless steel hygienic bench presses

Stainless steel is required by the food, pharmaceutical, parachemical and cosmetic industries for obvious hygiene reasons, as the production environment is subject to repeated and powerful cleaning to avoid contamination.



Resistance to foam blasting and alkaline cleaning, austenitic-grade stainless steel, and no breeding grounds for bacteria: EMG’s stainless steel manual presses meet the needs of workshops and production environments subject to strict hygiene and cleaning requirements.

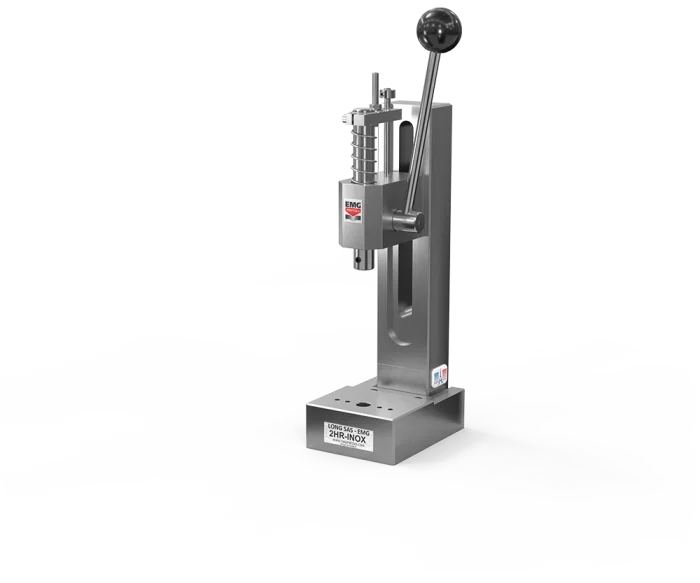

2HR INOX hygienic bench presses
2HR INOX
Weight12 kg
Clear height54 » 200 mm
Swan-neck depth72 mm
Stroke0 » 50 mm
Power200 kg

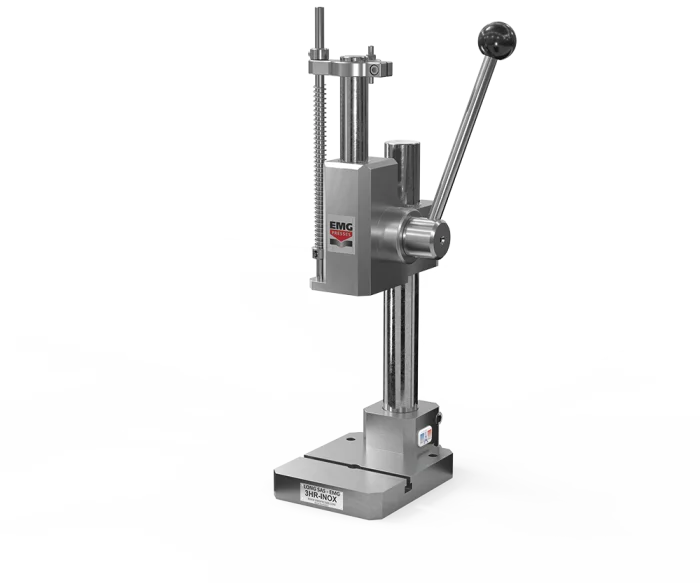

3HR INOX hygienic bench presses
3HR INOX
Weight20 kg
Clear height35 » 270 mm
Swan-neck depth80 mm
Stroke0 » 80 mm
Power400 kg

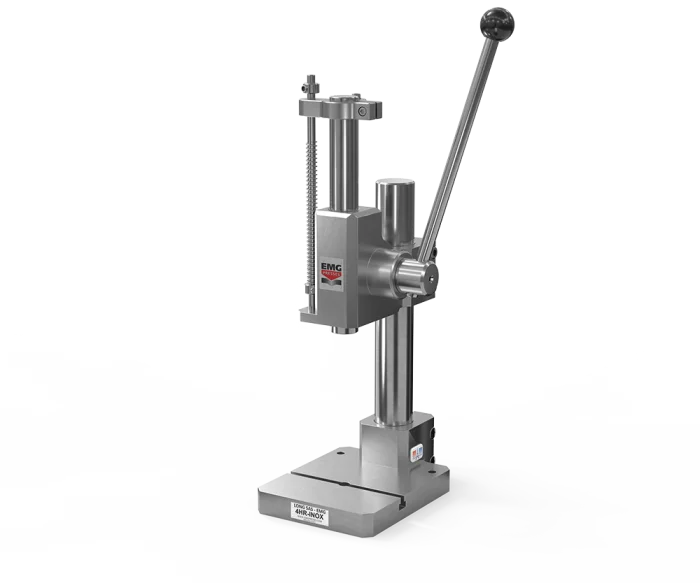

4HR INOX hygienic bench presses
4HR INOX
Weight29 kg
Clear height46 » 280 mm
Swan-neck depth95 mm
Stroke0 » 100 mm
Power600 kg

How to choose your stainless steel press?

The choice of a press depends on several complementary criteria:

  • The force required to carry out the operation on your workpiece.
  • The stroke, which must allow for the movement required by the tooling.
  • The clearance height, to be determined taking into account the workpiece, the tool and their positioning.
  • The depth of the swan neck, which determines access to the work area on the workpiece.

A more powerful press in this range also offers a greater stroke and a larger working area. The choice must therefore take all these characteristics into account.


A stainless steel construction for demanding environments

Choosing a stainless steel bench press is a matter of meeting the requirements of your production environment, particularly when the equipment is subject to regular cleaning.

To identify the right solution, please specify the products used, the cleaning methods and the conditions to which the machine will be exposed. This information enables EMG to assess your needs, taking into account your maintenance and usage requirements.


Applications to be assessed alongside your tooling

Assembly, pressing, riveting, cutting, bending or deep drawing: the feasibility of each operation depends on the force required, the material being worked, the geometry of the workpiece and the associated tooling.

EMG works with you to assess the customisation and tooling requirements specific to your application.

You can also discover a project involving 200 kg stainless steel presses for the perfumery industry, developed for a fragrance formulator.


Confirm your choice with EMG

Send us the dimensions of your parts, a description of the operation and your production constraints. EMG will assist you in choosing the right model and can carry out tests on your samples at its technical centre.
