Manual rack presses
The EMG range of manual rack presses comprises two different types of press :

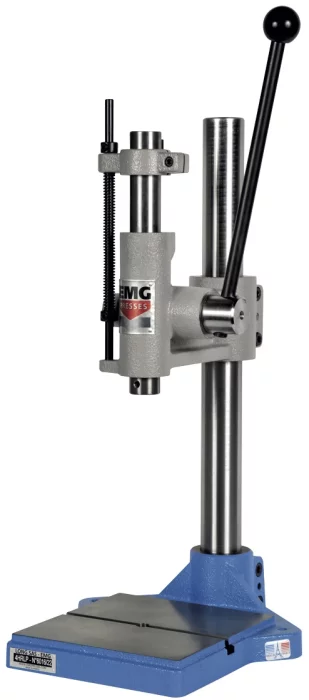

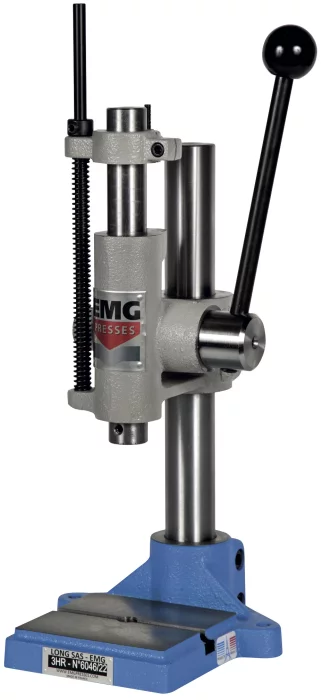

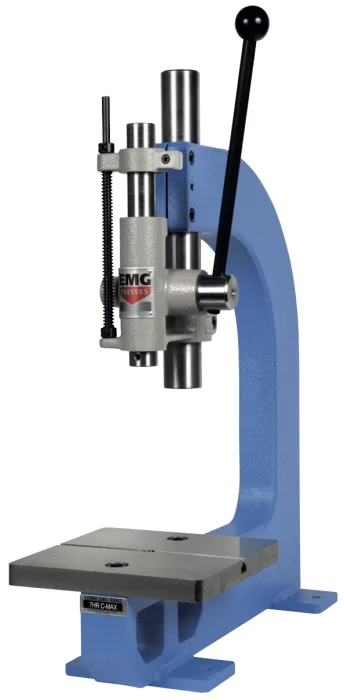

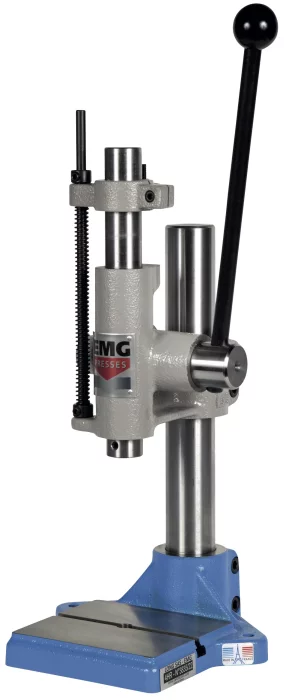

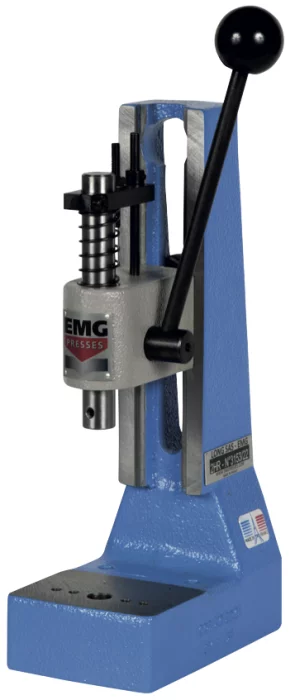

* Rack and pinion manual presses whose power, from 200 to 600 kg, is linear and constant over the entire stroke depending on the force exerted on the machine lever. They can be used for assembly operations, bearing and ring assembly, crimping, small bending operations, etc.

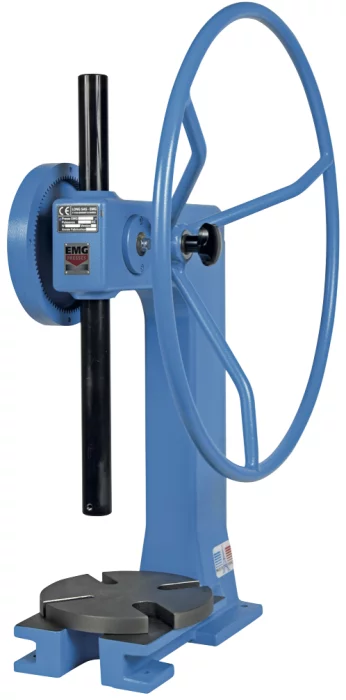

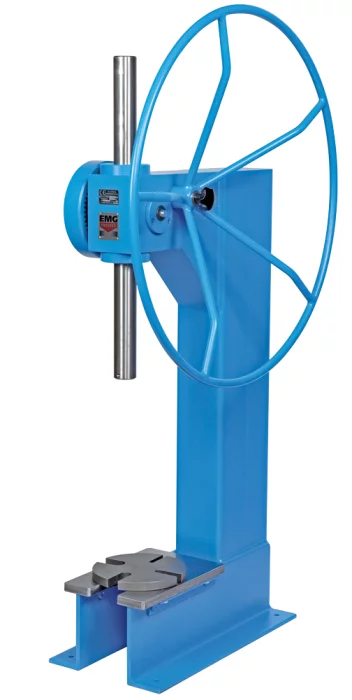

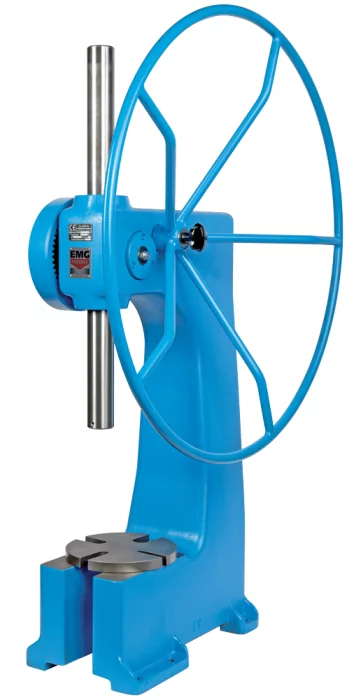

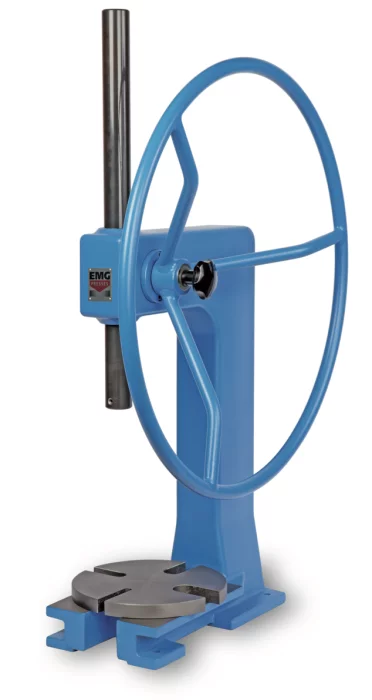

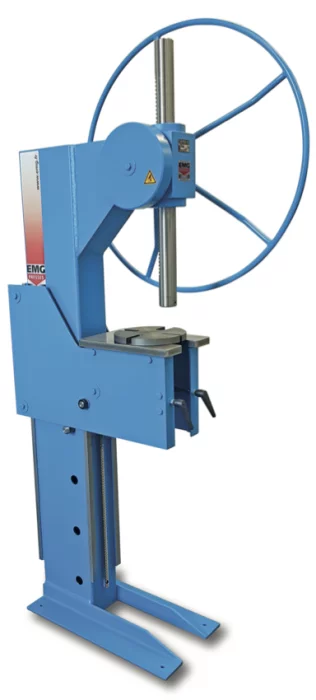

* High-capacity manual rack-and-pinion presses, which complete the range of rack-and-pinion presses. With capacities ranging from 1400 kg to 5000 kg, these models are perfectly suited to applications such as assembly, deep-drawing and all applications requiring significant travel and/or headroom.
Together with toggle manual presses and high-capacity toggle manual presses, they make up EMG's extensive range of manual presses.
Power400 kg |
Stroke0 » 80 mm |
Swan-neck depth80 mm |
Clear height35 » 270* mm |
Weight17 kg |
Power600 kg |
Stroke0 » 100 mm |
Swan-neck depth95 mm |
Clear height46 » 280* mm |
Weight25 kg |
Power5 000 kg |
Stroke0 » 530 mm |
Swan-neck depth250 mm |
Clear height530 mm |
Weight145 kg |
Power5 000 kg |
Stroke270 » 800 mm |
Swan-neck depth310 mm |
Clear height800 mm |
Weight145 kg |
Applications
MAIN FEATURES

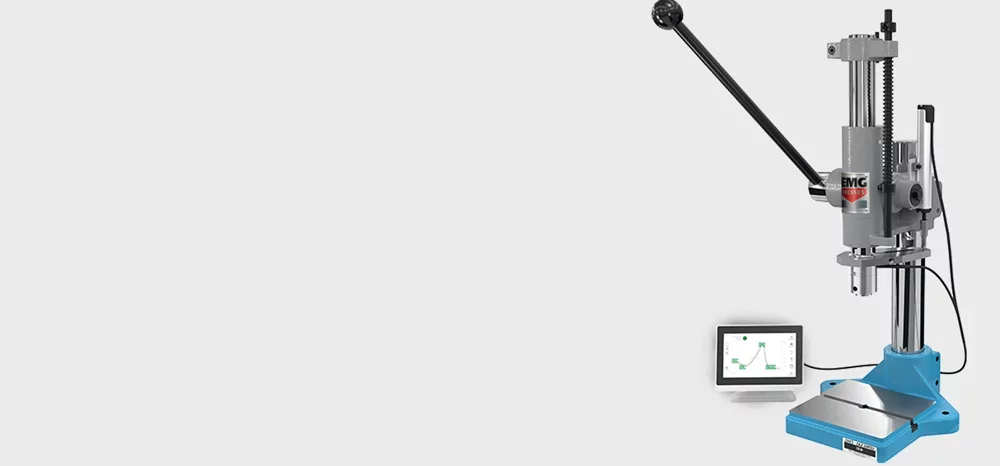

Force / stroke monitoring
MANUAL AND PNEUMATIC PRESSES
EMG offers all types of force and/or displacement management, with force and displacement transducer solutions to suit every need, for 100% part control.
Non return system
FOR MANUAL PRESSES

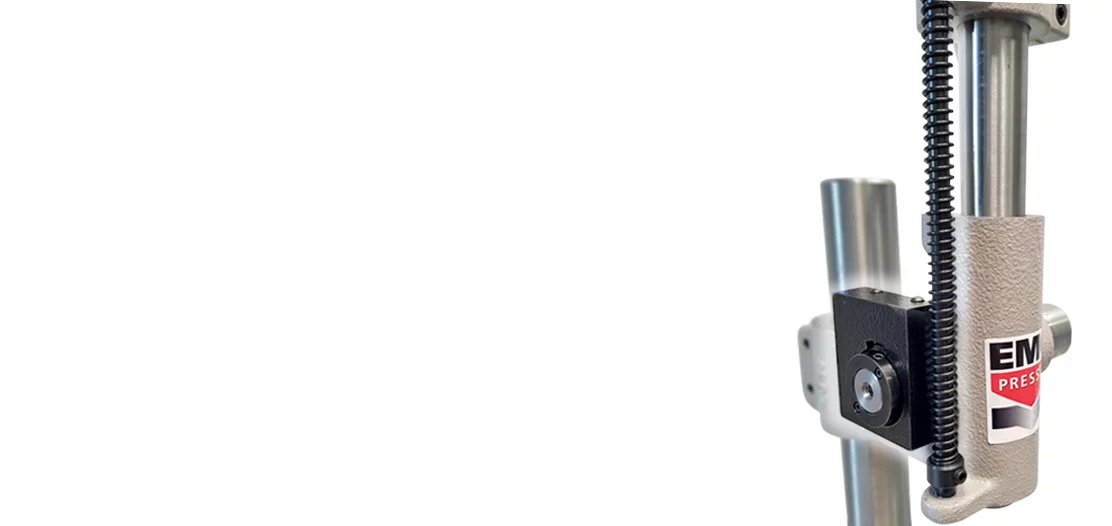

Anti-return system: prevents the lever from rising if the end of travel is not reached (guarantees complete and reproducible execution of the operation).
Features :
Manufactured in France and ISO-9001 certified since 2000, the EMG range of manual presses offers a wide choice of options and adaptations to meet the most diverse needs and requirements of each application, in industry as well as in construction.
The most varied operations are carried out smoothly thanks to the power reserve of each model and the rigorous overall precision.
- Adjustable headroom and stroke
- Quick and easy to set up
- Low investment

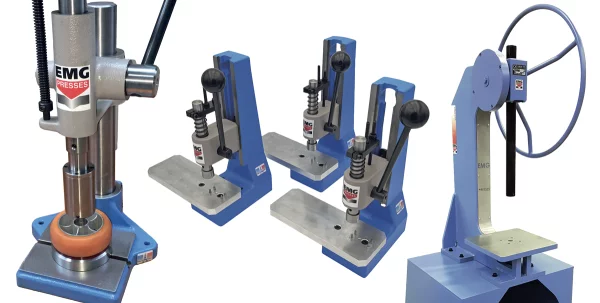

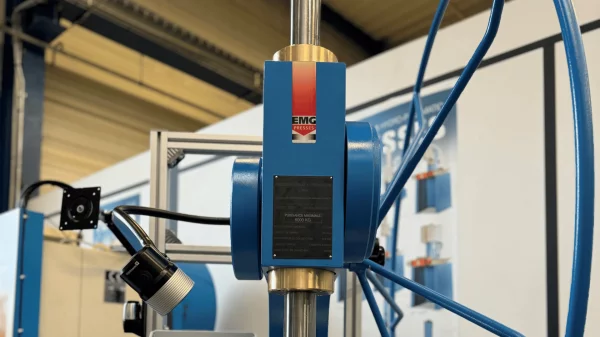

LONG is also committed to designing and equipping the special machines required by the specific activities of each trade. To meet the needs of specific applications required by certain trades and fields of activity, EMG offers custom-made special equipment, perfectly adapted to specifications and production constraints.
Thanks to its design office and a fleet of more than 40 machining centres, EMG can design and manufacture any modification or special presses on request, as well as small press fittings and tooling, such as :
- Press with offset toggle to increase the depth of the gooseneck and the work table.
- Press with a tool for crimping 3 rivets to hold a steel part in a stainless steel support.
- Pneumatic press with 2-position cutting tool incorporating a top deflector for part ejection.
- Pneumatic press with electric control panel
APPLICATIONS
Manual presses can be used to assemble many different types of product. They are suitable for small production runs of small to medium-sized parts.
Although they are less suited to bending than pneumatic or mechanical presses, manual presses can be very effective at bending different materials. It is important to check the characteristics of the manual press, including its permissible pressing force, to ensure that the desired result is achieved.
Whatever the intended operation, the operator manipulates the lever or handwheel to apply the necessary pressure throughout the stroke. They are easy to use, and the force management system means that different materials several millimetres thick can be assembled with very high precision in a very short space of time.
An EMG manual press is delivered with a service manual, CE conformity certificate and drawings. It comes with a full one-year parts, labour and travel warranty.
